Important Note: Due to the industry-wide materials shortage, we are experiencing some delays in obtaining certain models. We have recently received a shipment, but supply may be spotty for some things soon.
Replacement freebody kits are available for most Pro-Lite wheels. Some wheels are only available with Shimano/SRAM type freebodies.
All freebodies include a rubber seal and if applicable, an axle collar. If your axle collar is broken, but you don't need a freebody, you can also purchase an axle kit and request an axle collar with that item.
Shimano/SRAM freebodies are compatible with 11 speed cassettes and come with a spacer for 8, 9 and 10 speeds. You may receive a black, aluminum type spacer ring or the new steel type with 3 detents pressed in for the new Shimano keyed cassette type. Campy type freebodies are the same width for 9, 10 and 11 speeds, so do not come with a spacer.
If you are unsure, take a clear pic of your wheel and contact us.
Here is a chart of models available and their order codes:
Shimano/SRAM Type:
| Wheel Name | Order Code |
|---|---|
| Antero Carbon (all sizes), Antero XC (all sizes), Antero AM (all sizes) - Please note that this now includes the V2 Axle Collar and is milled to allow Road 11 speed. Use the provided spacer to use with MTB 10 speed, MTB 11 speed or Road 8, 9. 10 speed (Included ItemsV1-V2 Guide). | FHXE |
| Avanzo XC (all sizes), Avanzo AM (all sizes), Ignis XC (all sizes), Ignis AM (all sizes) (note that this is MTB-11S, which is narrower than Road, so this is not the CX version) | FH03S 3-Pawl |
| Avanzo XC (all sizes), Avanzo AM (all sizes), Ignis XC (all sizes), Ignis AM (all sizes) (note that this is MTB-11S, which is narrower than Road, so this is not the CX version) | FH03S 4-Pawl |
| Bortola (all models, V1 and V2) - This includes the "Shimano-specific" washer: 18.5mm (OD) x 15mm (ID) x 1mm (thick) | FH10S |
| Bracciano 4-Bearing (*Click to see the difference) (Typically C50T, Caliente, A42 - also the new A27W) (see below in XX1 section for XDR type) | FH02S |
| Bracciano 5-Bearing (*Click to see the difference) (Typically A27 and 650C - not the new A27W) | FH05S |
| Cicilia (all models) - Please note that this kit includes spacer for 8, 9, 10 speeds as well as the V2 Axle Collar for road wheels using 11 speed (Included Items V1-V2 Guide). | FHXE |
| Como DS, Como (non-DS version) (*Note: The Como cannot be changed from Shimano to Campy or vice versa.) The Como has been a great wheel for thousands of riders, but since it has been out of production for more than 10 years, we are unable to provide this part. If you have gotten great service from your PL Como, please consider its successor, the Garda DS. Great deals every day at Wiggle! |
FH07S - Discontinued |
| Garda DS 650, Garda DS, Garda A42 (includes single piece 6000-2RS bearing for non-drive side - additionally, replacement bearings may be purchased at your LBS or hardware store) | FH06S+1x(6000-2RS) |
| Garda-W (also seen on some stores as Garda A30W 2.0) (includes single piece 6000-2RS bearing for non-drive side - additionally, replacement bearings may be purchased at your LBS or hardware store) | FH13S+1x(6000-2RS) |
| Gavia (all models V2 - click to see the difference) | FH01S |
| Gavia (all models V1 - click to see the difference) *Special Note on Washer A *Special Note on Washer B IMPORTANT NOTE: Gavia V1 parts are no longer in production. This item is permanently discontinued. |
FH04S-GV1 |
| Goro (all models*) Important Note: Since the Gravel standard was introduced, a few things have changed and the earliest models of the Goro GX had a different rear hub. Parts are no longer available for that variant. If your freehub does not have a rubber ring or your serial numbers are between 05150908 and PL-05151007, the current item will not be compatible. (click to see the difference) If you have the older style, please contact us directly to see if we can make this part available to you. |
FH14S |
| Luciano, Merano A30, Merano A25W, Merano A25W Gravity This item is permanently discontinued.*Special Note on Washer B |
FH04S-M |
| Padova (all models), Rome Road, Vicenza (all models) | FH01S |
| Paula | FH01S |
| Revo (all models EXCEPT Revo Comp) (XDR - See below) | FH11S |
| Stelvio | FH05S |
| Verona A25W (includes 6000A Bearing Kit, replacement ball bearings may be purchased at your LBS or hardware store) | FH06S+1x(6000-2RS) |
| Veleta (all sizes) - Discontinued | FH09S - Discontinued |
XD/XDR (MTB) Type: (for XX1 11 speed and 12 speed systems)
| Wheel Name | Order Code |
|---|---|
| Antero Carbon (all sizes), Antero XC (all sizes), Antero AM (all sizes) | FHXX1-6 |
| Avanzo XC (all sizes), Avanzo AM (all sizes), Ignis XC (all sizes), Ignis (all sizes) | FHXX1-4 |
| Revo (all models EXCEPT Revo Comp), Bracciano 4-Bearing (XDR) | FHXX1-4 |
For more information about XD vs XDR, please refer here: SRAM XD vs XDR
Campy Type:
| Wheel Name | Order Code |
|---|---|

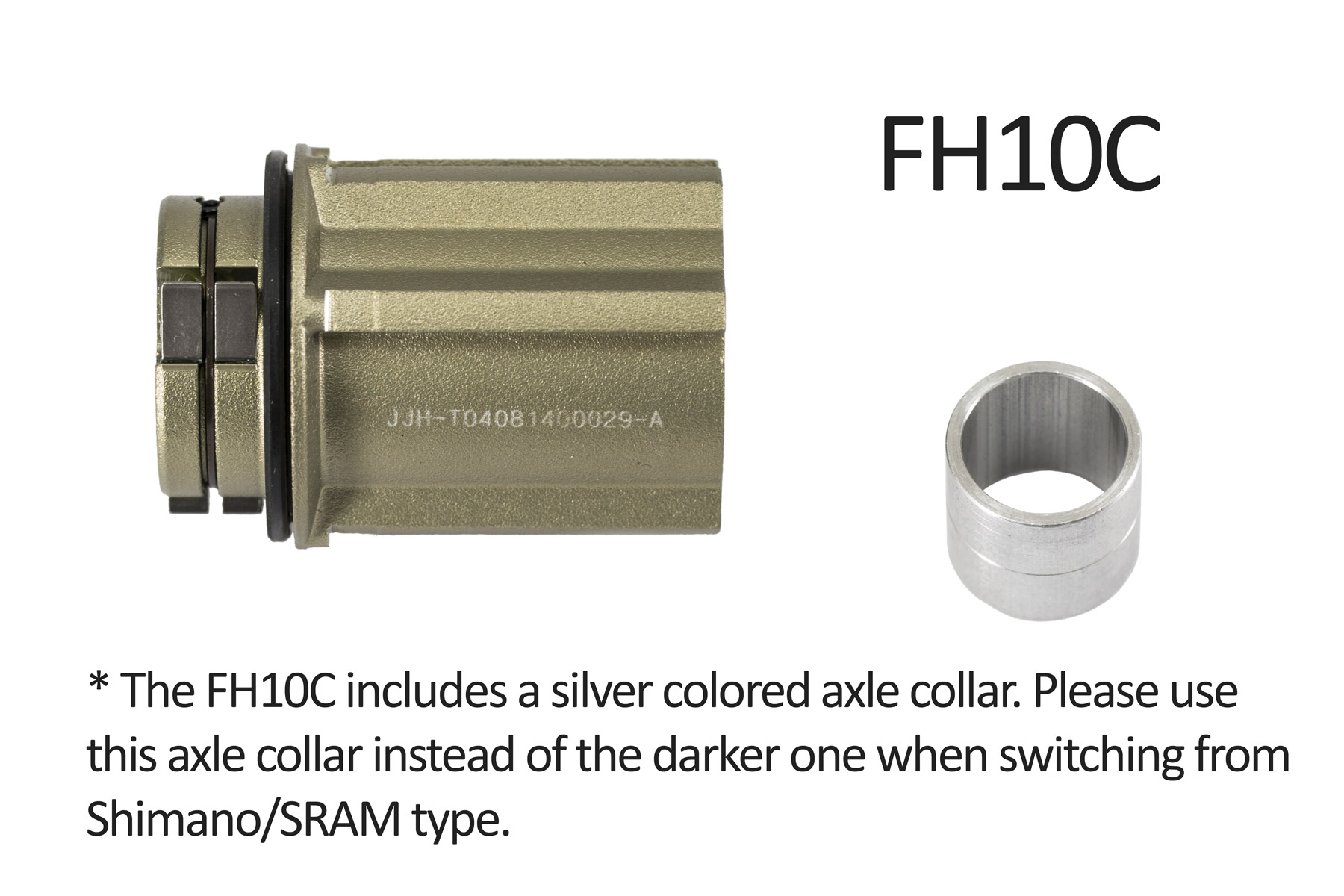

| Bortola (all models, V1 only) (*includes Campy-type axle collar - (*Pic) - (*Vid)) (Click to see the difference) *Discontinued and Out of Stock. | FH10C-V1 |

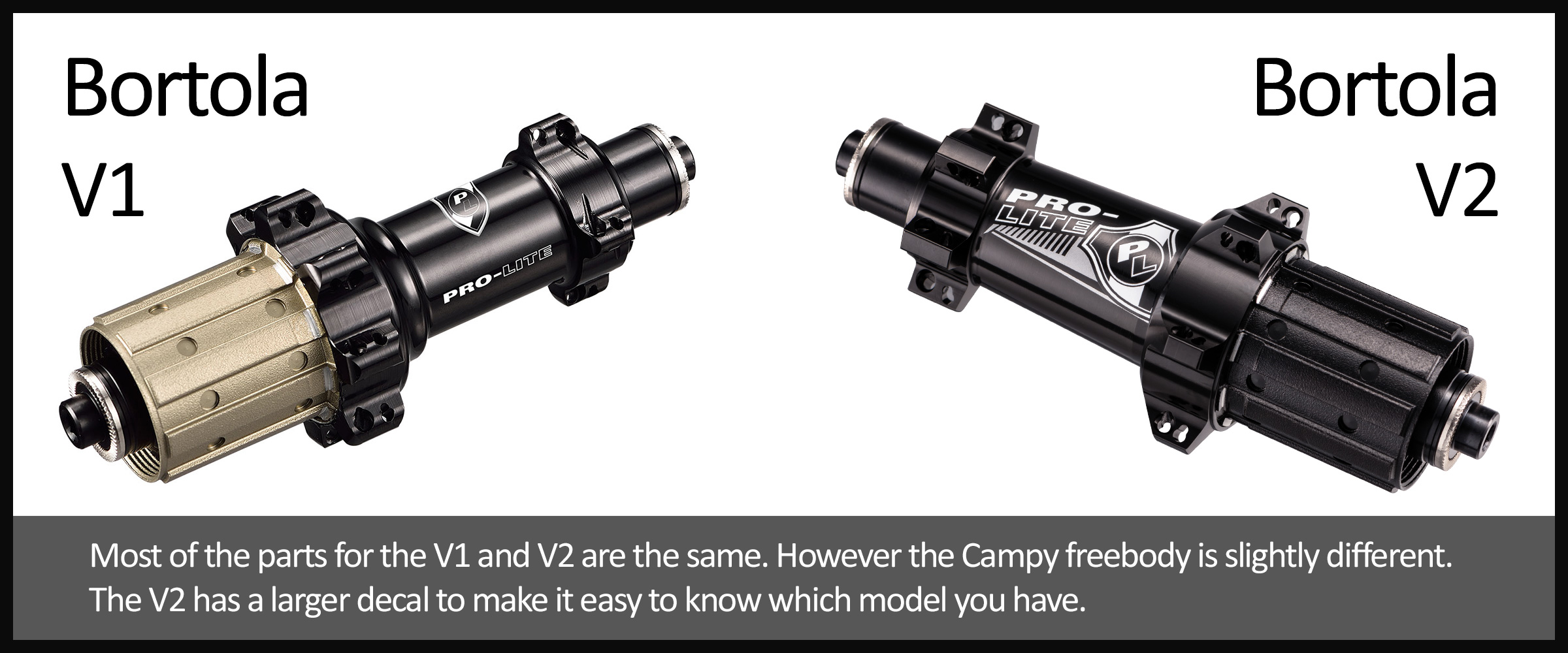

| Bortola 2.0 (all models) (Click to see the difference) | FH10C-V2 |
| Bracciano 4-Bearing (*Click to see the difference) (Typically C50T, Caliente and A42 - also the new A27W) | FH02C |
| Bracciano 5-Bearing (*Click to see the difference) (Typically A27 and 650C - not the new A27W) | FH05C |
| Como DS, Como (non-DS version) (*Note: The Como cannot be changed from Shimano to Campy or vice versa.) The Como has been a great wheel for thousands of riders, but since it has been out of production for more than 10 years, we are unable to provide this part. If you have gotten great service from your PL Como, please consider its successor, the Garda DS. Great deals every day at Wiggle! | FH08C |
| Gavia (all models V2 - click to see the difference) | FH01C |
| Gavia (all models V1 - click to see the difference) *Special Note on Washer A *Special Note on Washer B | FH04C-GV1 |
| Luciano, Merano A30, Merano A25W, Merano A25W Gravity *Special Note on Washer B | FH04C-M |
| Padova (all models), Rome Road, Vicenza (all models) | FH01C |
| Paula | FH01C |
| Revo (all models EXCEPT Revo Comp) | FH11C |
| Stelvio | FH05C |
Most Pro-Lite wheels can have the freebody replaced easily with a few simple tools. Remember to clean and re-grease the ratchet portion of the hub shell with a quality non-lithium grease. For maximum life, prior to tightening the cassette lock ring, take a moment to align the rings against the splines, then tighten to the correct torque as shown on the lock ring.
Cassette replacement: youtube.com/watch?v=UexH3aKfHFM
For Garda and Como wheelsets, freebody replacement requires a 12mm hex bit, a bar and/or a torque wrench capable of 800N·m (approx 80kgf·m or 600lb·ft). Replacing the freebody also requires removing the bearings, so be sure to have a fresh set of bearings or purchase one here.
* Please have the wheel serviced by a qualified technician. Damage caused by improper installation not covered by warranty.
**Shipping is calculated in 500g increments. Combined shipping may be available for this item. Items are shipped on Wednesday and Friday of each week from Taiwan. Shipping costs will be calculated during checkout. Duty and taxes are not included, as these are imposed by the destination country and may be payable by the recipient according to the Customs regulations in your home country. In many cases, the shipper will facilitate this for you and may charge a modest fee at the discretion of the branch in your country. To find out more, please contact your country's Customs and Border Services.
