Starting From $6.49
Ex Tax: $6.49
* Front or Rear Wheel:
* Axle Kit Order Code:
ATTENTION: Due to issues of material availability. Padova/Vicenza axle kits are limited availability. We may no longer have stock of this item, but feel free to contact us to check. We apologize for the inconvenience.
This axle kit contains a basic axle kit. The axle collar is not included. If you are in need of an axle collar, please visit this page.
The axles found on this page for the Padova and Vicenza are individual items for either Road or Track. The PW-X-PAA-RK includes the axle and nuts for the axle, but does not include a cog. See the picture. The PW-X-PAA-RK-SOLO is the axle only with limited availability. The complete axle kit for 2-in-1 wheels (Padova and Vicenza) including road and track axles is no longer available.. Instead, we have made a new item PW-X-PAA-RK-Track-Kit, which includes the full track parts, including cog, spacer, washer and lock ring. Availability may be limited.
If you are unsure of your model, take a clear pic of your wheel and contact us.
Here is a chart of models available and their order codes:
Front:
| Wheel Name | Order Code |
|---|---|

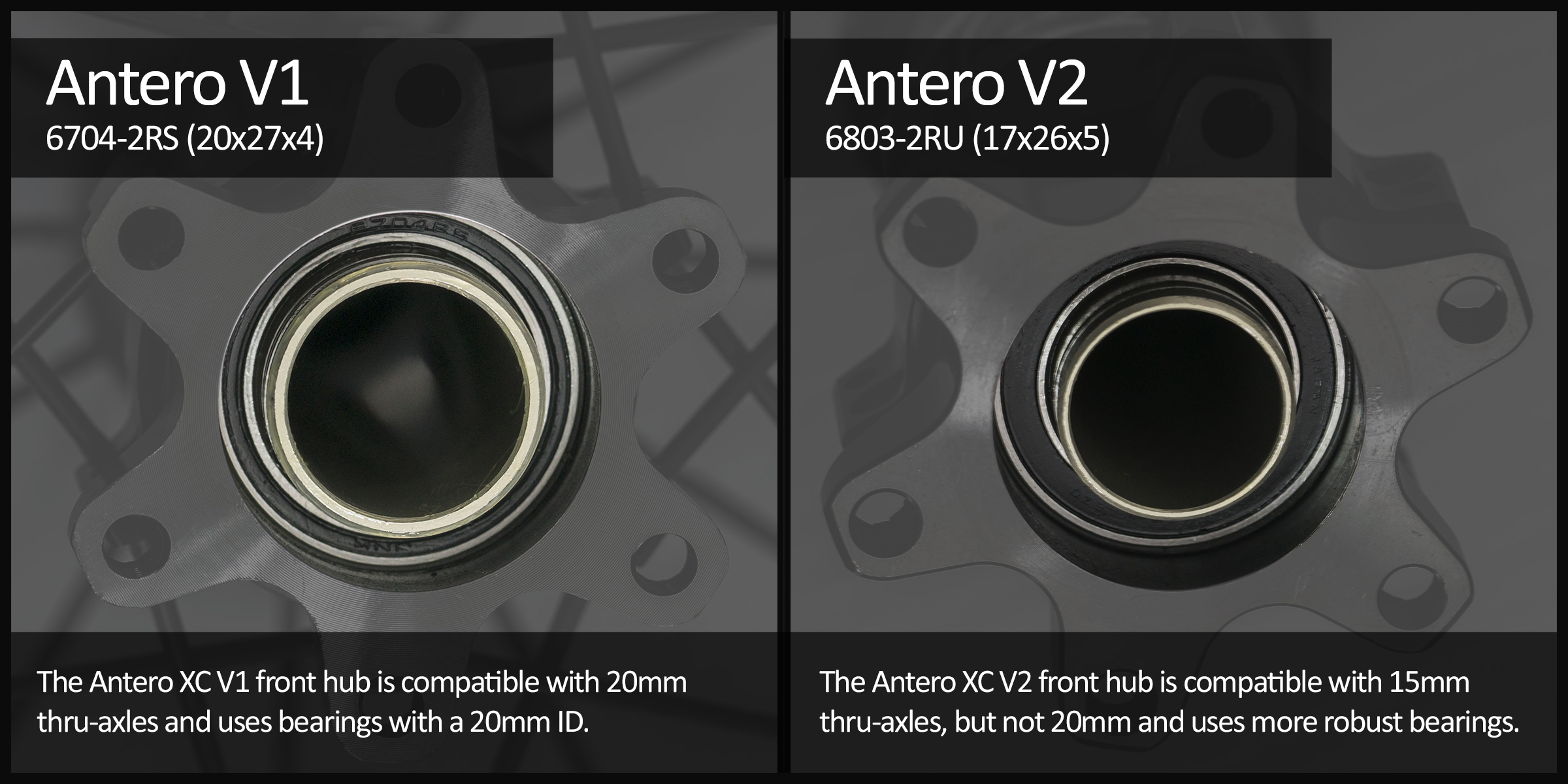

| Antero Carbon V1 (all sizes), Antero XC V1 (all sizes) (*Click to see V1 vs V2) | PW-X-ANO-XCV1-FQ5 |
| Antero Carbon V2 (all sizes), Antero XC V2 (all sizes) (*Click to see V1 vs V2) | PW-X-ANO-XCV2-FQ5 |
| Antero AM (all sizes) | PW-X-ANO-AM-FQ5 |
| Avanzo XC (all sizes), Avanzo AM (all sizes) | PW-X-AVO-FQ5 |
| Bortola (all models, V1 and V2 - not Bortola Disc) | PW-X-BTA-F |
| Bortola Disc (15mm, 12mm, QR) | PW-X-BTAD-F |
| Bracciano C50T, Bracciano Caliente, Bracciano A42, Bracciano A27, Bracciano 650C | PW-X-BRO-F |
| Cicilia (all models) | PW-X-CIC-F |
| Como DS, Como (non-DS version) | PW-X-COO-F |
| Garda DS, Garda DS 650, Garda-W (also known as Garda A30W) | PW-X-GAAMEO-F-G |
| Gavia (all models) | PW-X-GVA-F |
| Goro (all models) (791SB)(click to see note on 15mm axle parts) | PW-X-GOR-F |
| Ignis CX (OEM), Ignis XC (all sizes), Ignis AM (all sizes) | PW-X-IGS-FQ5 |
| Luciano, Merano A25W, Merano A25W Gravity | PW-X-GAAMEO-F-M |
| Paula | PW-X-PUA-F |
| Revo 6-Bolt ISO (all models EXCEPT Revo Comp) (12mm ONLY) | PW-X-REV-ISO-551-12-F |
| Revo 6-Bolt ISO (all models EXCEPT Revo Comp) (15mm, 12mm, QR) *Discontinued and Out of Stock | PW-X-REV-ISO-551-F |
| Revo Center Lock (all models EXCEPT Revo Comp) V1 (*Click to see the difference) (611SB/A) | PW-X-REV-CLV1-F |
| Revo Center Lock (all models EXCEPT Revo Comp) V2 (*Click to see the difference) (791SB-CL) | PW-X-REV-CLV2-F |
| Rome Front | PW-X-ROM-FQK |
| Veleta (all sizes) | PW-X-VEA-FQ5 |
| Verona A25W | PW-X-VOA-F |
| Vicenza (all models) | PW-X-PAA-FQ |
| Lignano C50T, Rosa A30, Rosa 650C for Kid’s Track Bike | PW-X-ROA-F |
| * Shark Traverse - 15mm Front Axle Kit | TR-X-CX-F-15 |
Rear:
| Wheel Name | Order Code |
|---|---|
| Antero Carbon (all sizes), Antero XC (all sizes), Antero AM (all sizes) | PW-X-ANO-RQX |
| Avanzo XC (all sizes), Avanzo AM (all sizes) | PW-X-AVO-RQX |
| Bortola (all models, V1 and V2 - not Bortola Disc) | PW-X-BTA-R |
| Bortola Disc (12mm) | PW-X-BTAD-R-12 |
| Bortola Disc (QR) | PW-X-BTAD-R-QR |
| Bracciano 4-Bearing (*Click to see the difference) (Typically C50T, Caliente and A42 - also the new A27 2.0) | PW-X-BRO-R |
| Bracciano 5-Bearing (*Click to see the difference) (Typically A27 and 650C - not the new A27 2.0)*Discontinued and Out of Stock | PW-X-BROL-R |
| Cicilia (all models) | PW-X-CIC-R |
| Como DS, Como (non-DS version) (Shimano/SRAM) (includes 18x1/4" steel balls) | PW-X-COO-CS-R |
| Como DS, Como (non-DS version) (includes 9x1/4" + 11x3/16" steel balls) | PW-X-COO-CC-R |
| Garda DS, Garda DS 650 ***DISCONTINUED*** | Discontinued |
| Garda-W (also known as Garda A30W 2.0) | PW-X-GAR2-R |
| Gavia - To identify a V2, look for the "V2" text on the hub (click for a pic to show the difference). | PW-X-GVA-R-V2 |
| Gavia - The V1 hub is similar, but does not have the "V2" text and has a multi-part end cap (click for a pic to show the difference). IMPORTANT NOTE: We recently obtained a few Gavia V1 axles. This item can be ordered again. |
PW-X-GVA-R-V1 |
| Goro (all models* - QR and 12mm sold separately)< Important Note: Since the Gravel standard was introduced, a few things have changed and the earliest models of the Goro GX had a different rear hub. Parts are no longer available for that variant. If your freehub does not have a rubber ring or your serial numbers are between 05150908 and PL-05151007, the current item will not be compatible. |
PW-X-GOR-R-QR, PW-X-GOR-R-12 |
| Ignis CX (OEM), Ignis XC (all sizes), Ignis AM (all sizes) | PW-X-IGS-RQX |
| Luciano, Merano A25W, Merano A25W Gravity | PW-X-MEO-R |
| QR Type: (click for pic*) Padova* (all models), Vicenza* (all models) | PW-X-PAA-RQ |
| Track Type (Alloy): (click for pic) Padova (all models), Vicenza (all models), Rome Track | PW-X-PAA-RK |
| Track Type (Alloy) - Axle *ONLY*: (click for pic) Padova (all models), Vicenza (all models), Rome Track (Limited Availability) | PW-X-PAA-RK-SOLO |
| Track Type (Alloy) - Full Track Kit: (click for pic) Padova (all models), Vicenza (all models), Rome Track (Limited Availability) | PW-X-PAA-RK-Track-Kit |
| Paula | PW-X-PUA-R |
| Revo 6-Bolt ISO - QR Type (all models EXCEPT Revo Comp) | PW-X-REV-ISO-R-QR |
| Revo 6-Bolt ISO - 12mm type (all models EXCEPT Revo Comp) | PW-X-REV-ISO-R-12 |
| Revo Center Lock - QR Type (all models EXCEPT Revo Comp) | PW-X-REV-CL-R-QR |
| Revo Center Lock - 12mm Type (all models EXCEPT Revo Comp) | PW-X-REV-CL-R-12 |
| Rome Road | PW-X-ROM-RQ |
| Veleta (all sizes) | PW-X-VEA-RQR |
| Verona A25W | PW-X-VEA-R |
| Lignano C50T, Rosa A30, Rosa 650C for Kid’s Track Bike | PW-X-ROA-R |
* Please have the wheel serviced by a qualified technician. Damage caused by improper installation not covered by warranty.
**Shipping is calculated in 500g increments. Combined shipping may be available for this item. Items are shipped on Wednesday and Friday of each week from Taiwan. Shipping costs will be calculated during checkout. Duty and taxes are not included, as these are imposed by the destination country and may be payable by the recipient according to the Customs regulations in your home country. In many cases, the shipper will facilitate this for you and may charge a modest fee at the discretion of the branch in your country. To find out more, please contact your country's Customs and Border Services.
